Description

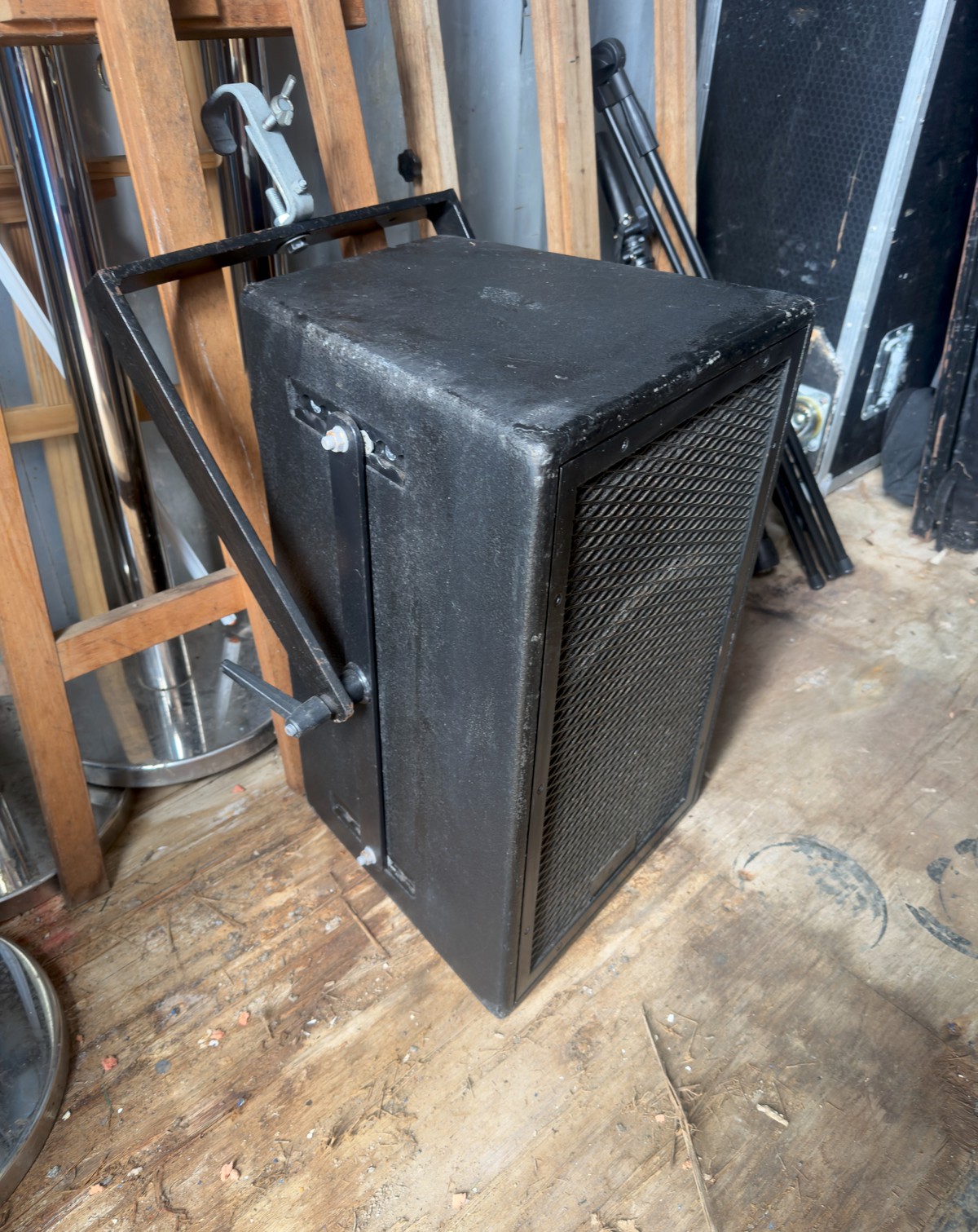

The GAE System 12 is a vented, full-range loudspeaker system incorporating a 12" special cone driver, a horn-loaded 1,4" N/DYM-compression driver and a passive crossover network. (optionally available as 2-way active version)

The hand-laminated fibre-glass horn is extremely robust and resistant to mechanical influence.

The horn is available in two different dispersion versions and is rotatable.

The passive crossover is optimally tuned to the speaker components and is sufficiently dimensioned for high-power handling.

The HF-driver is electronically protected against overloading.

The multi-layered, birch-ply enclosure is sealed with a black polyurethane, structure varnish.

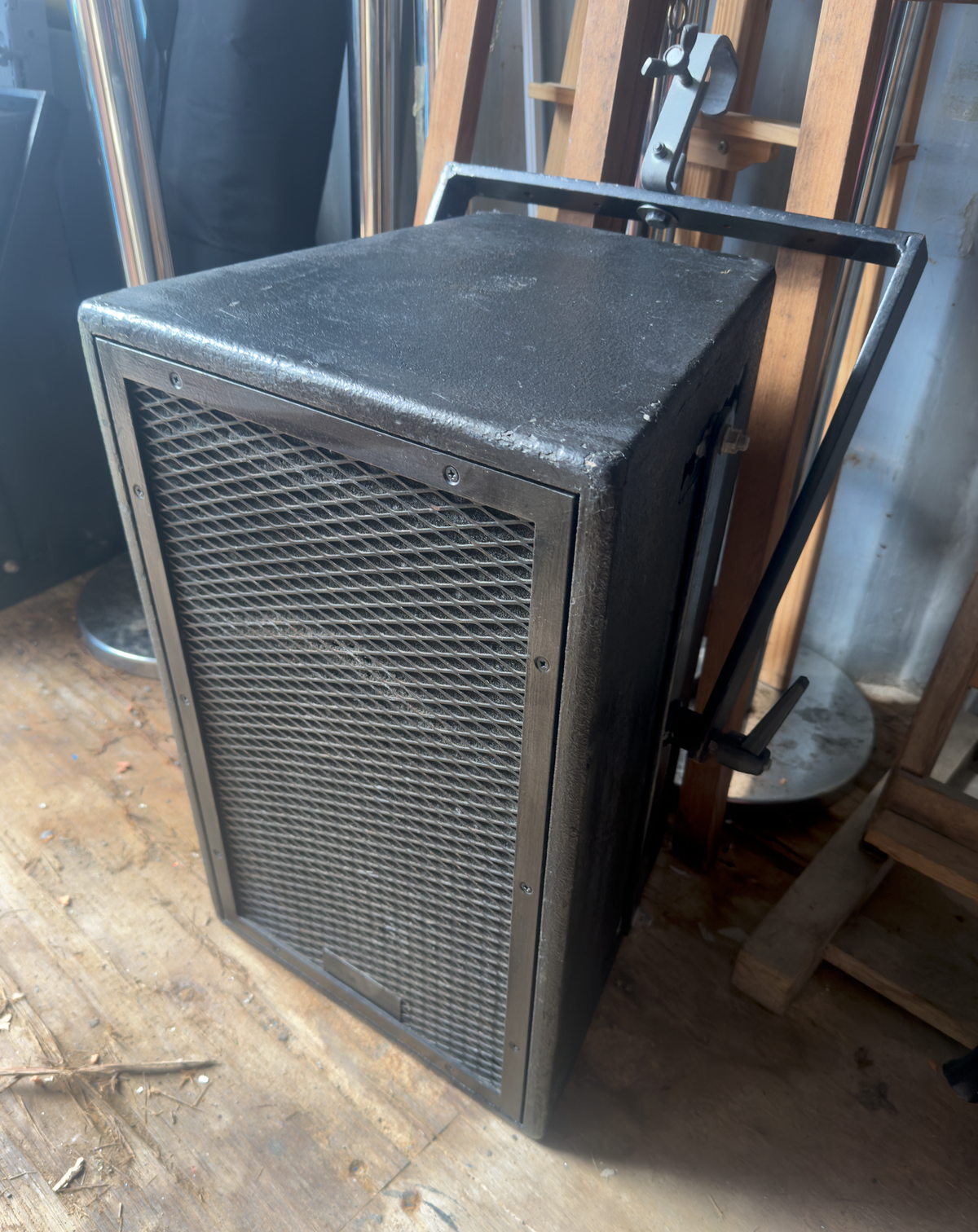

The components are protected by a metal front grill with high permeability and fronted with acoustic foam.

The system is equipped with handling recesses.
The side walls are equipped with one, the top and bottom with three and the rear side with two M10 threaded shafts to enable the mounting of an installation-yoke by means of metric bolts.

The connectors are of the Neutrik Speakon 4-pole type.


Design.............................................................................2-way full-range, passive crossover, vented enclosure

Frequency Range..........................................................65Hz – 18kHz (+/- 3dB)

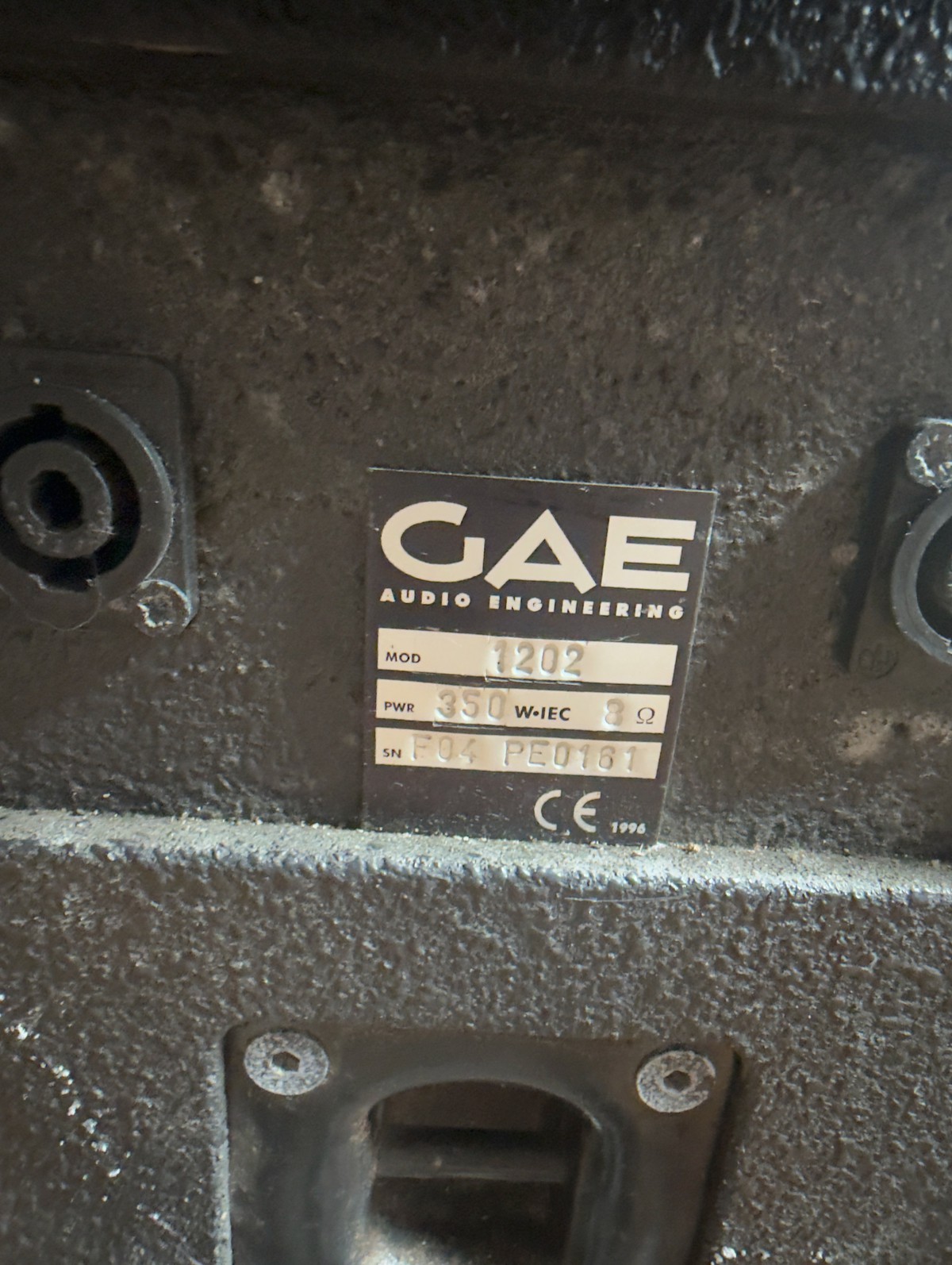

Power handling capacity..............................................350W (IEC norm 268-5)

Impedance......................................................................8

Dispersion......................................................................80°x60° (System 12-8), 60°x40° (System 12-6), revolvable

Sensitivity (1W/1m).......................................................100dB

Peak SPL (1m)...............................................................>130dB

Components...................................................................12“/1,4“N/DYM

Fittings............................................................................M10 mounting flanges

Recommended input power (IEC)...............................350W – 700W / 8

Connectors.....................................................................2 x Neutrik Speakon NL4MP

Weight (kg).....................................................................33 passive version, 30 active version

Dimensions (H x W x D) (cm).......................................66 x 38 x 41,5


Click here for more products from this seller

Delivery notes

Collection from Tonbridge TN10

Contact notes

Emma 07912751153
